Front and Rear Parking Assist System 12v
Steelmate PTS810V10 Front & Rear Parking Assist System – 8 Sensors
Take the stress out of tight parking spaces with the Steelmate PTS810V10 Front & Rear Parking Assist System. Designed with 8 parking sensors – 4 front and 4 rear – and a clear LCD display, the system helps provide greater awareness of obstacles around your vehicle when parking and manoeuvring. Fact Sheet for PTS810V10

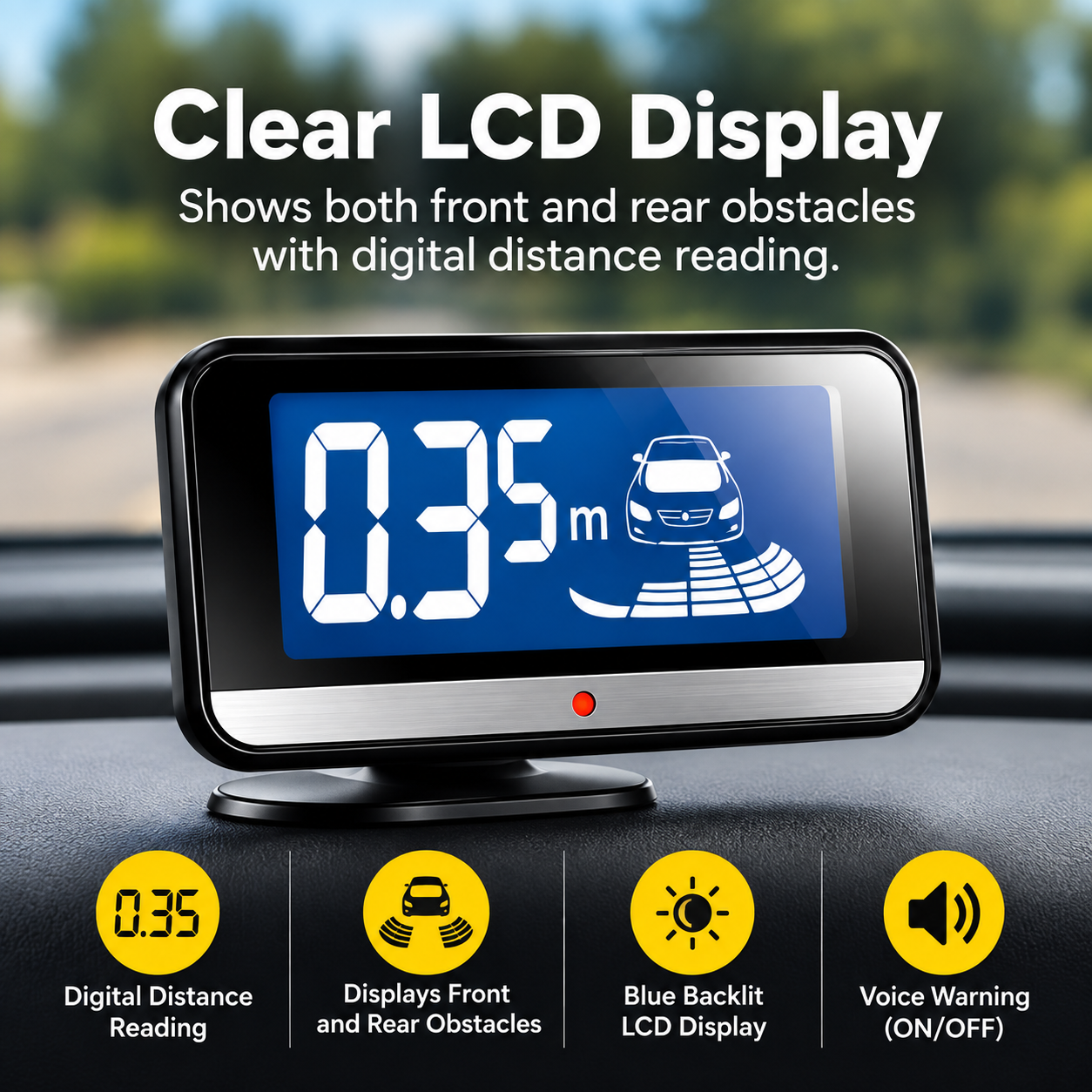

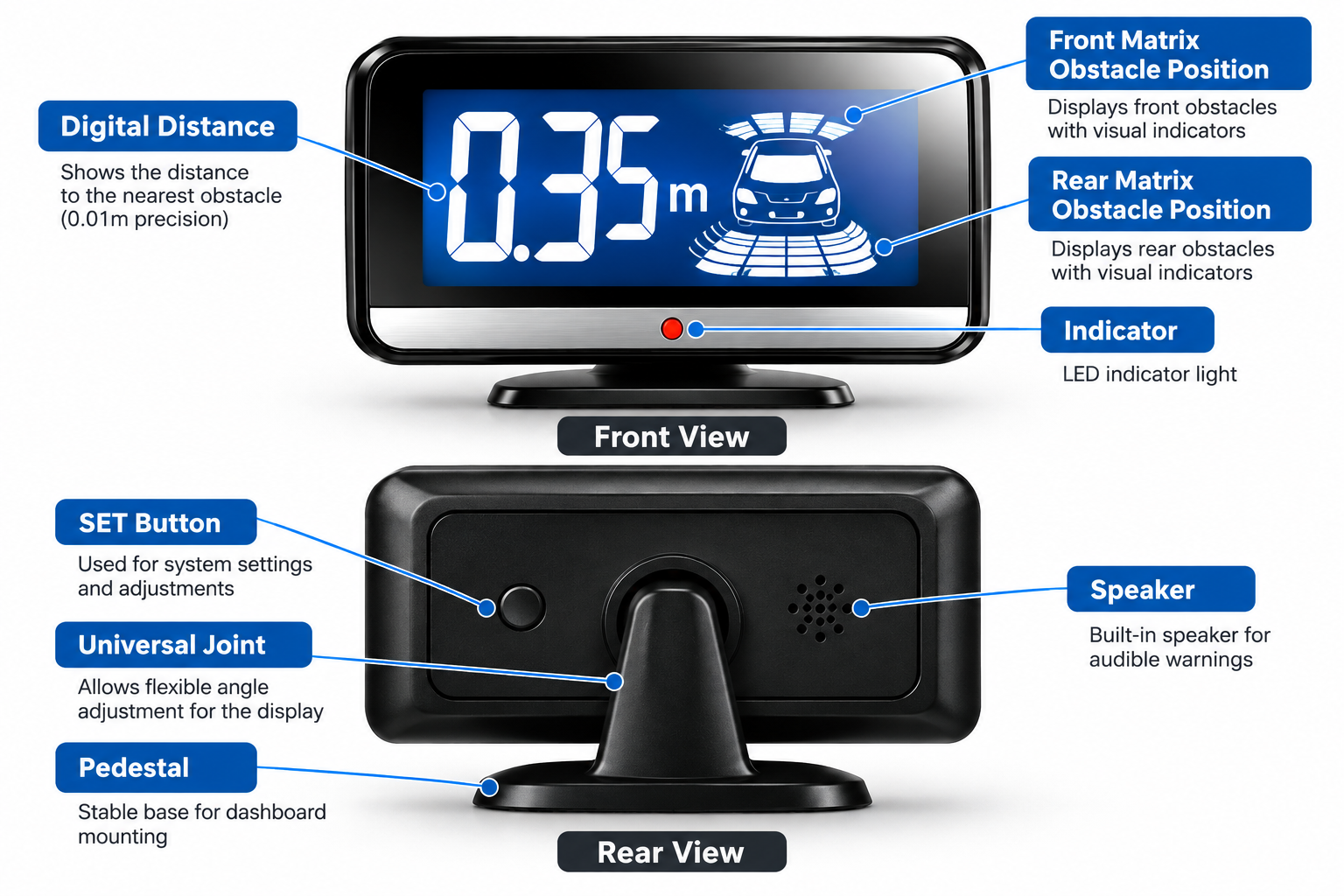

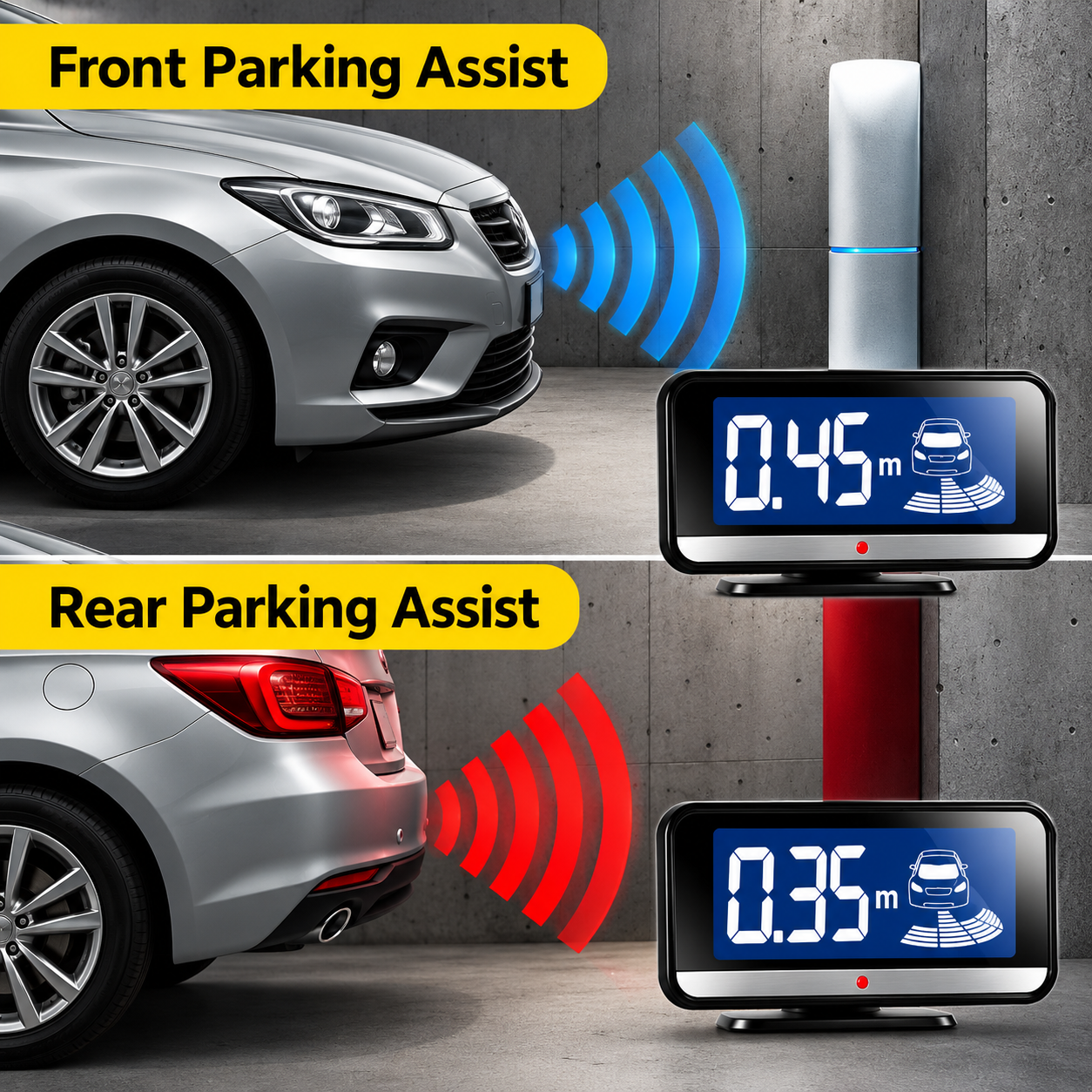

The LCD display shows both front and rear obstacle positions, together with a digital distance reading. The rear parking system activates automatically when reverse gear is selected, while audible voice warnings provide an additional alert as you approach an obstacle. Fact Sheet for PTS810V10
Key Features
- 8-sensor front & rear parking assistance
- Can be configured as a 6-sensor system – 2 front + 4 rear
- Clear blue backlit LCD display
- Displays both front and rear obstacle positions
- Digital distance indication
- Precise detection to 0.01m
- Rear system automatically activates when reverse gear is selected
- Human voice warning with ON/OFF function
- Adjustable warning volume
- Adjustable sensor sensitivity
- Automatic self-test every time the system powers on
- Anti-false alert technology
- Dual-intelligent detection designed for compatibility with a tow bar or spare wheel
- Waterproof sensor connectors
- Changeable 0°, 4° and 10° sensor covers
- All-weather operating design from -40°C to +80°C Fact Sheet for PTS810V10

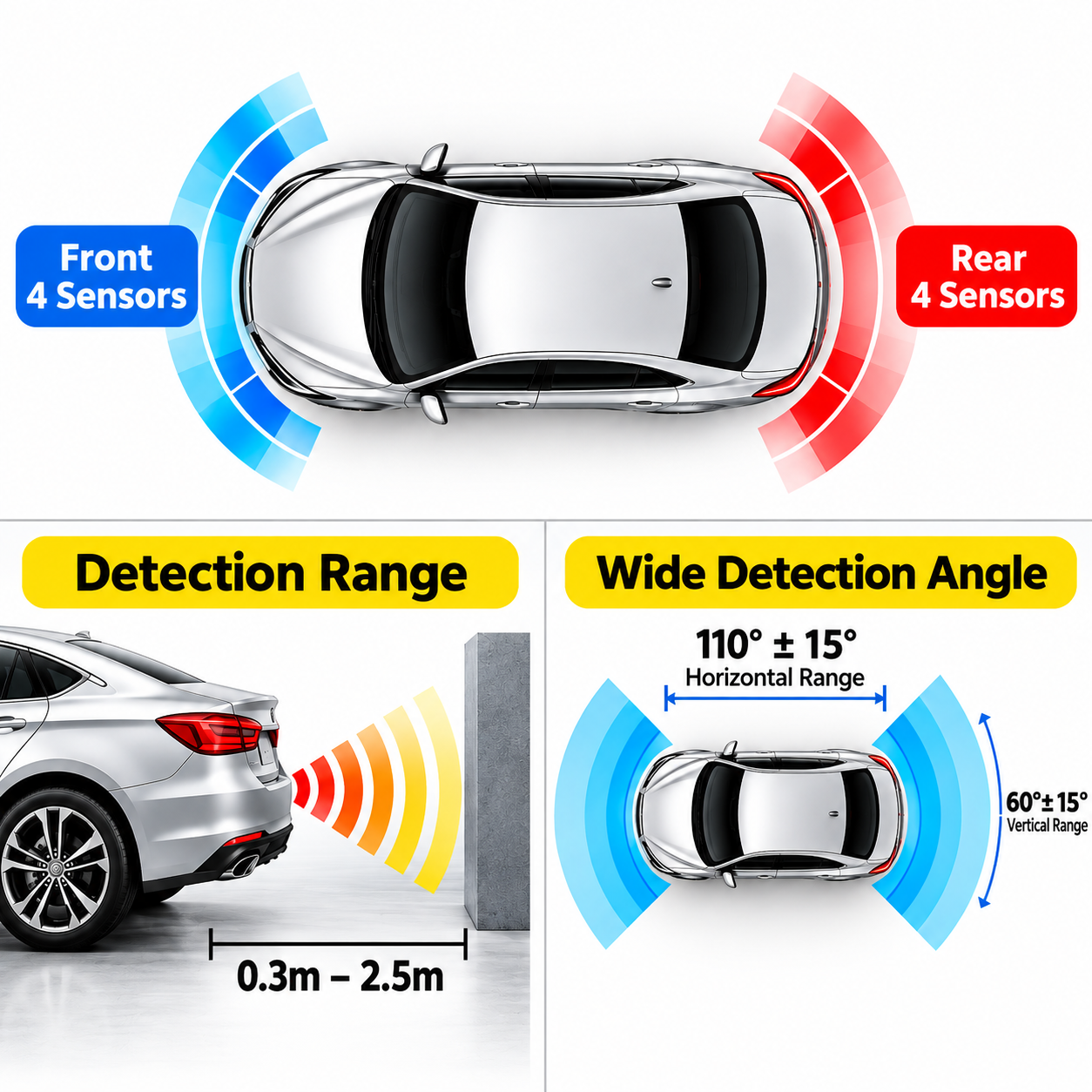

Detection Range
The system has a specified detection range of approximately 0.3m to 2.5m, helping the driver monitor obstacles while manoeuvring into confined spaces. The parking sensors provide a horizontal detection range of 110° ±15° and vertical range of 60° ±15°. Fact Sheet for PTS810V10

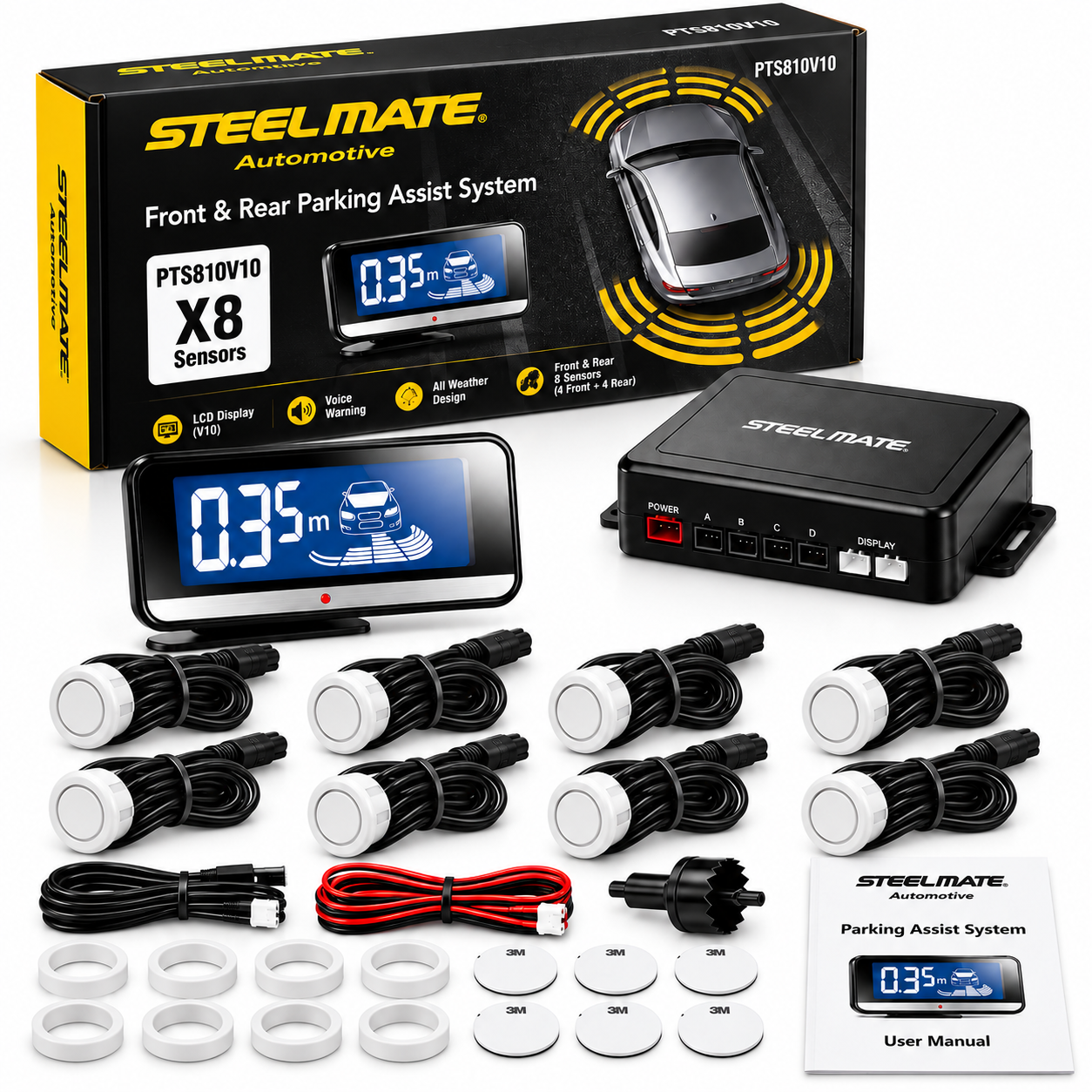

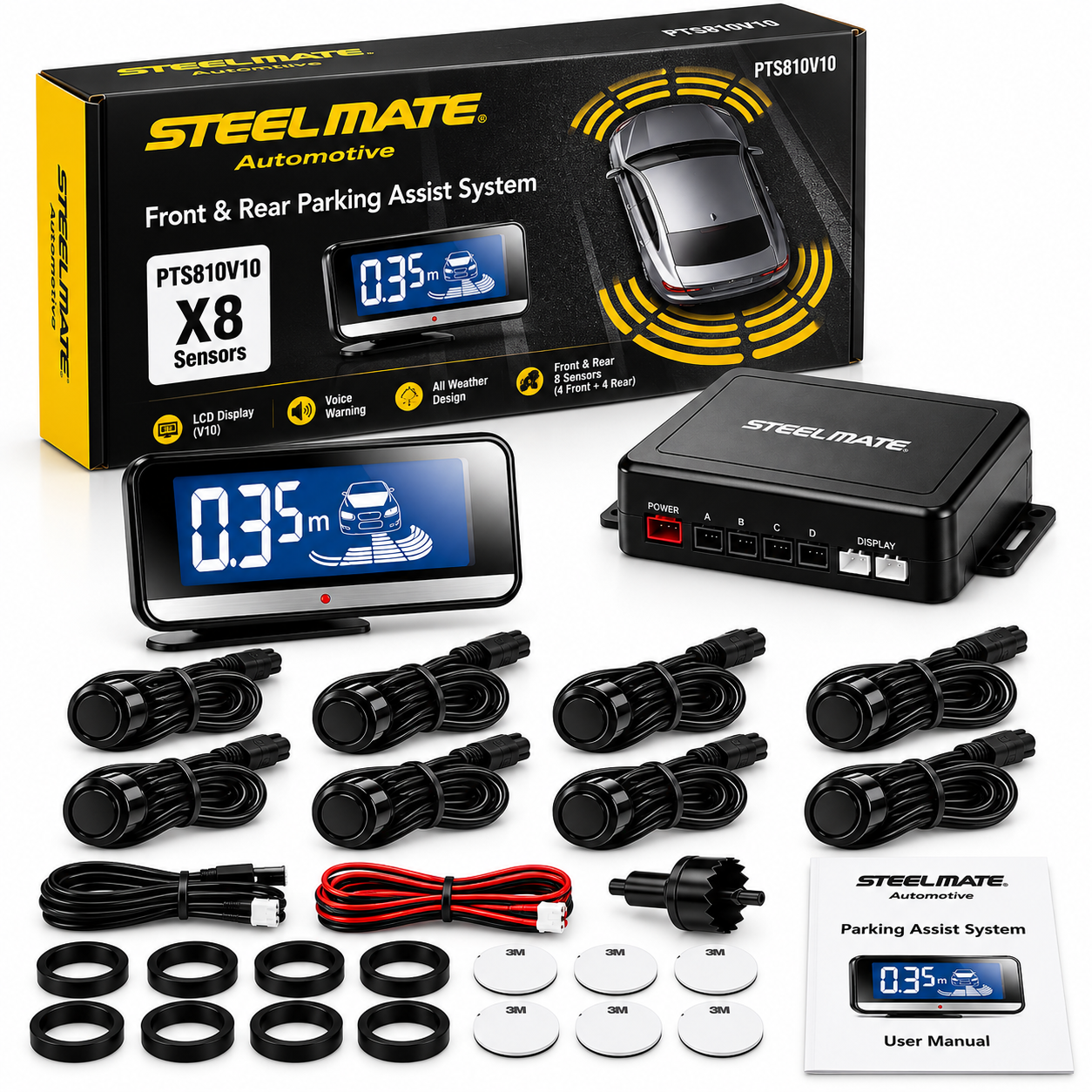

What's Included
The complete PTS810V10 kit includes:
- 1 × PTS810EX ECU control unit
- 1 × V10 LCD display

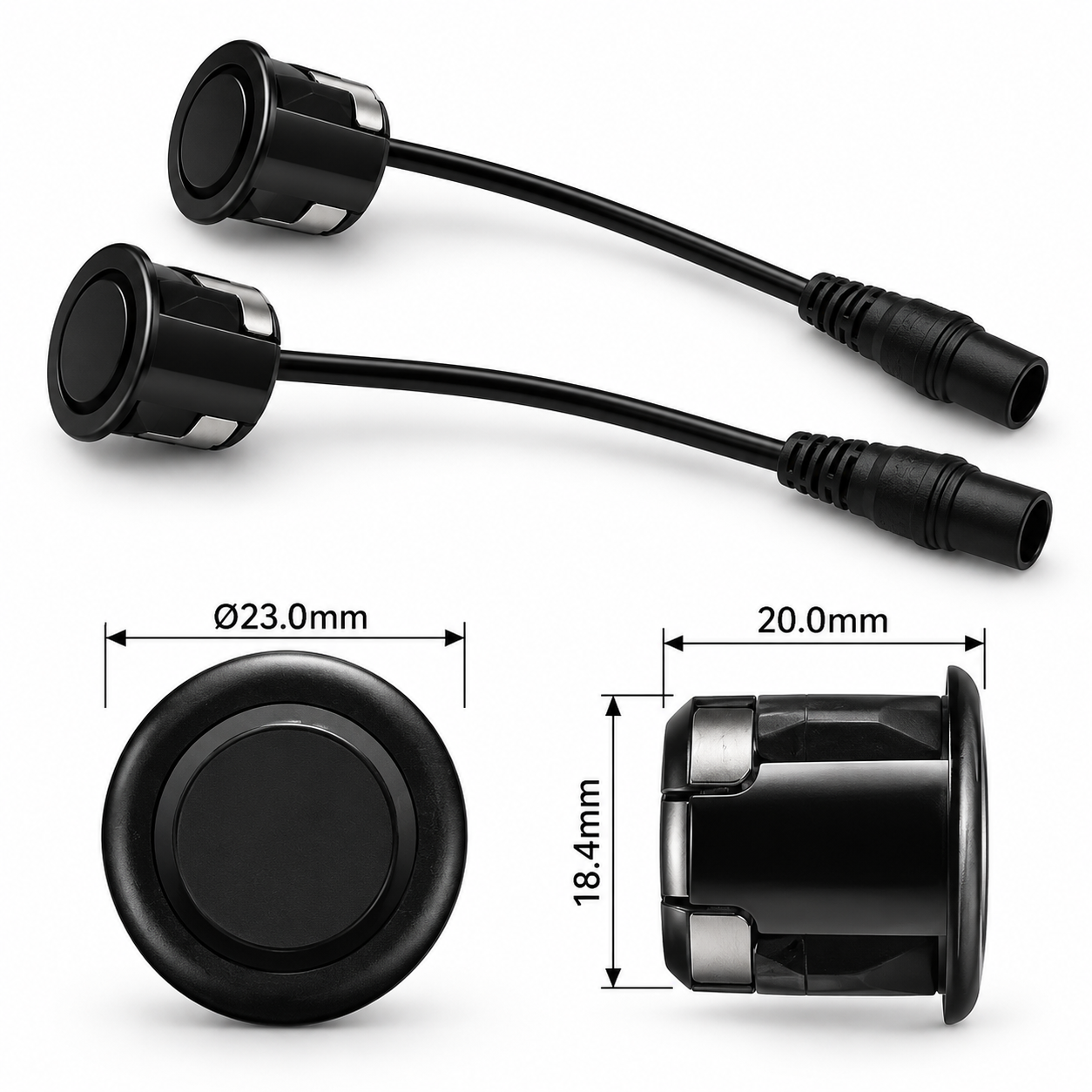

- 8 × 14D-12 parking sensors
- 4 × 2.3m rear sensor wires
- 4 × 7m front sensor wires
- 1 × Power harness
- 8 × 0° sensor covers
- 8 × 4° sensor covers
- 8 × 10° sensor covers
- 1 × 18.8mm hole saw
- 1 × User manual Fact Sheet for PTS810V10
Technical Specifications
Model: PTS810V10
System: Front & Rear Parking Assist
Sensors: 8
Display: V10 LCD
Operating Voltage: 9–16V
Operating Current: <350mA
Detection Range: 0.3–2.5m
Recommended Sensor Installation Height: 45–55cm
Display Sound Level: 70–90dB
Operating Temperature: -40°C to +80°C Fact Sheet for PTS810V10
Ideal for: Cars, SUVs and vehicles where improved front and rear parking awareness is required.
Please note: This parking assist system is designed as a driver aid. Drivers should always use mirrors, direct observation and normal safe-parking practices. Professional installation is recommended.
ETA - END OCTOBER 2026
