Steelmate TP-S17 i Solar Powered TPMS Internal Sensor
Steelmate TP-S17I Solar Powered TPMS – Internal Sensors

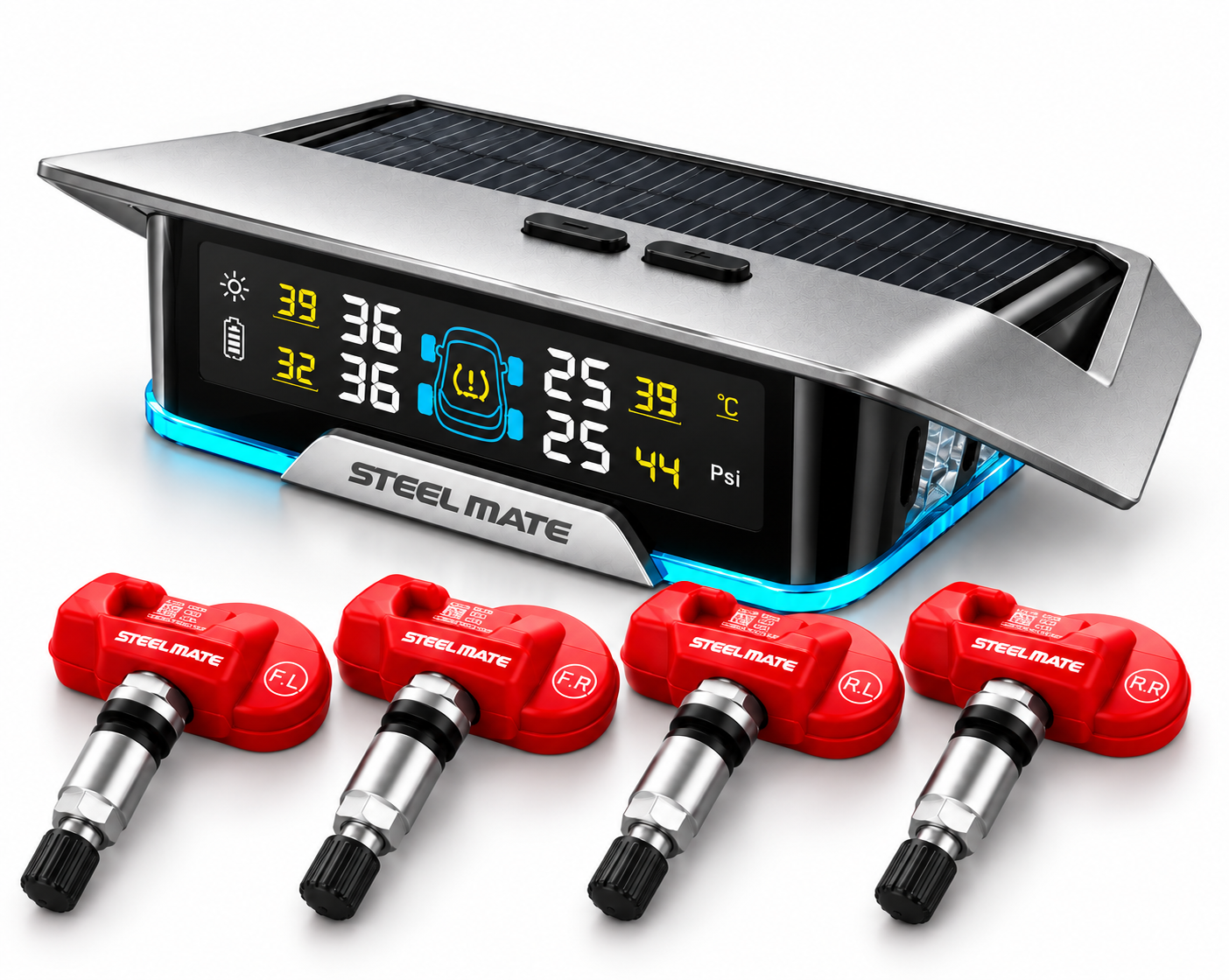

Keep an eye on your tyres while you drive with the Steelmate TP-S17I Solar Powered Tyre Pressure Monitoring System. Designed with 4 internal sensors and a solar-powered display, the TP-S17I continuously provides tyre pressure and temperature information for all four tyres at a glance. FactSheetforTP-S17I(1)
The system features automatic sensor positioning, allowing it to identify and assign each tyre sensor during normal driving without manual pairing. It also supports sensor replacement and tyre rotation without needing to re-pair the sensors.
ETA - EARLY NOVEMBER 2026
Key Features

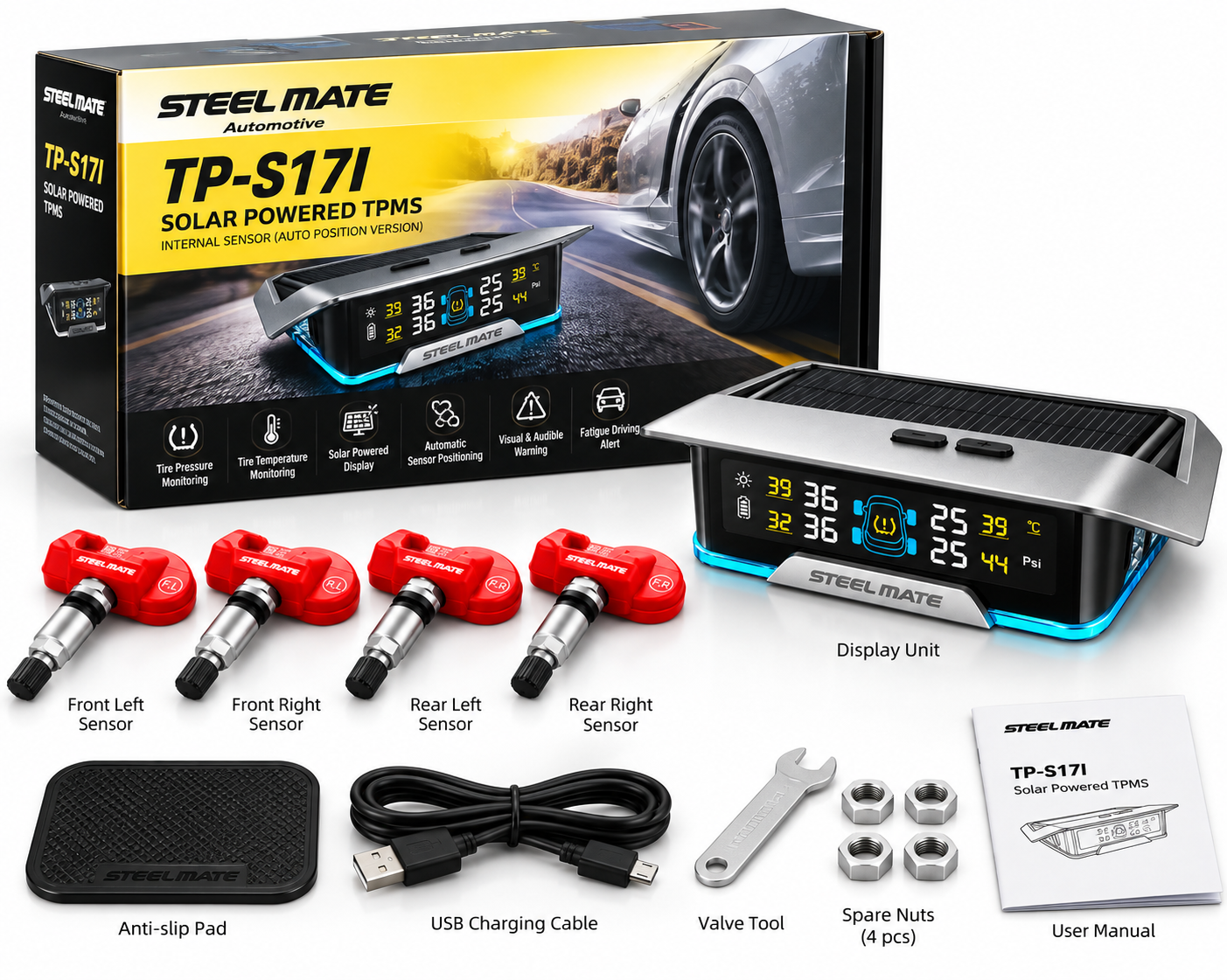

- 4 internal sensors with aluminium clamp-in valve stems
- Solar-powered display
- Optional Micro-USB charging
- Displays all 4 tyre pressures and temperatures simultaneously
- Automatic sensor positioning / Auto-Learning
- Visual and audible warnings
- High & low tyre pressure warnings
- High tyre temperature warning
- Air leakage warning
- Low sensor battery warning
- Sensor failure warning
- Smart ambient light warning
- Automatic display brightness adjustment
- Intelligent sleep mode for power saving
- Tyre rotation reminder
- Fatigue driving alert
- Switchable PSI / Bar
- Switchable °C / °F FactSheetforTP-S17I(1)
Smart Safety Alerts
The TP-S17I is designed to alert the driver to potentially abnormal tyre conditions, including high pressure, low pressure, high temperature, air leakage, low sensor battery and sensor failure. The display also provides dedicated tyre-rotation and fatigue-driving reminders, as illustrated on page 3 of the product fact sheet. FactSheetforTP-S17I(1)
Technical Specifications
Model: TP-S17I
Sensor Type: Internal – BSE176
Sensor Pressure Range: 0–8 Bar / 0–116 PSI
Operating Frequency: 433.92 MHz ± 0.015 MHz
Sensor Battery Life: ≥5 years
Sensor Operating Temperature: -30°C to +105°C
Display Battery: Built-in 500mAh battery
Display Operating Temperature: -20°C to +70°C
Solar Charging: ≥15mA
USB Charging: ≤120mA FactSheetforTP-S17I(1)
Adjustable Alarm Settings
High-pressure warning can be adjusted from 2.6–6.0 Bar / 37–86 PSI, low pressure from 0.9–3.9 Bar / 13–55 PSI, and high-temperature warning from 70–90°C / 158–194°F. The fatigue-driving reminder can be set between 2 and 8 hours. FactSheetforTP-S17I(1)
Ideal for everyday driving, long-distance travel and drivers who want convenient real-time tyre monitoring without relying on external valve-cap sensors.
